1. HCMM Catalog Number and Dies Making Up This Die Pair

2. Other Die Pairs That Include One of the Dies of BUC-229

None noted.

1. Obverse O229 Die Cracks and Die State Progression

No die cracks noted. Die pair state progression only from reverse markers.

2. Obverse O229 Broken Letters Unrepaired or Repunched

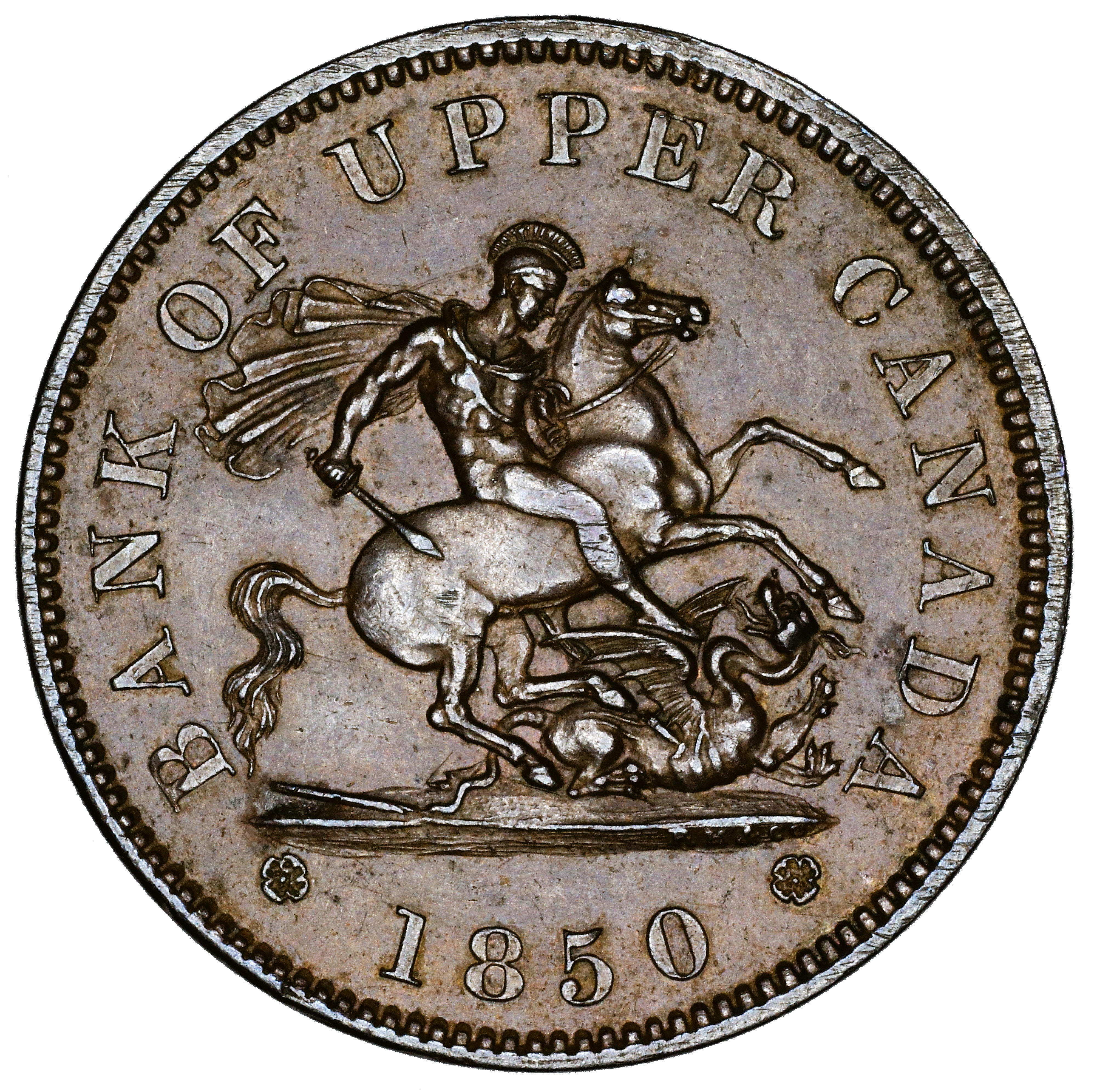

Summary:  BANK OF UPPER CANADA * 1850 *

Letter color code: Black = normal, Green = broken & unrepaired, Brown = broken with noteworthy repunching

Special Comments:

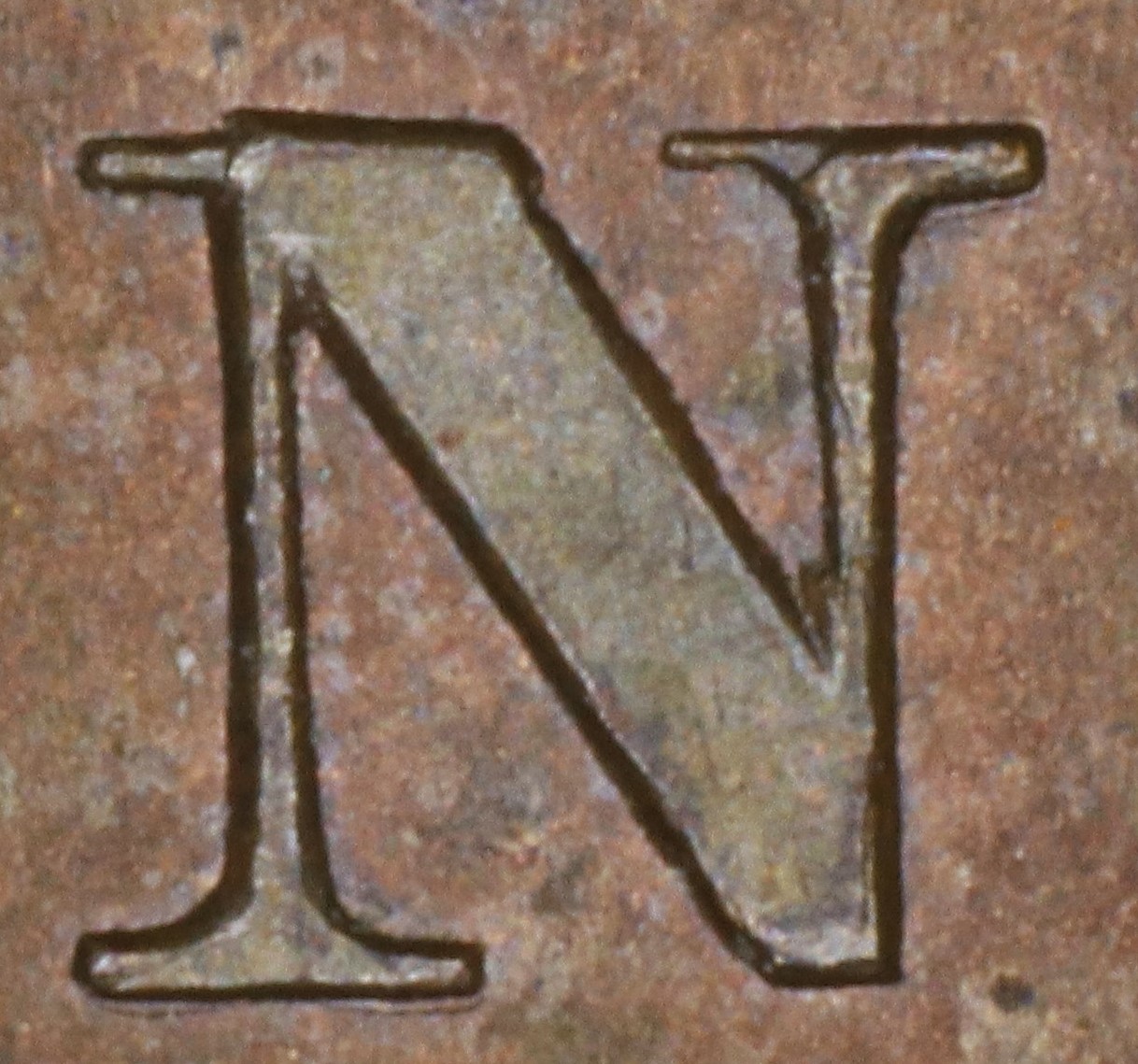

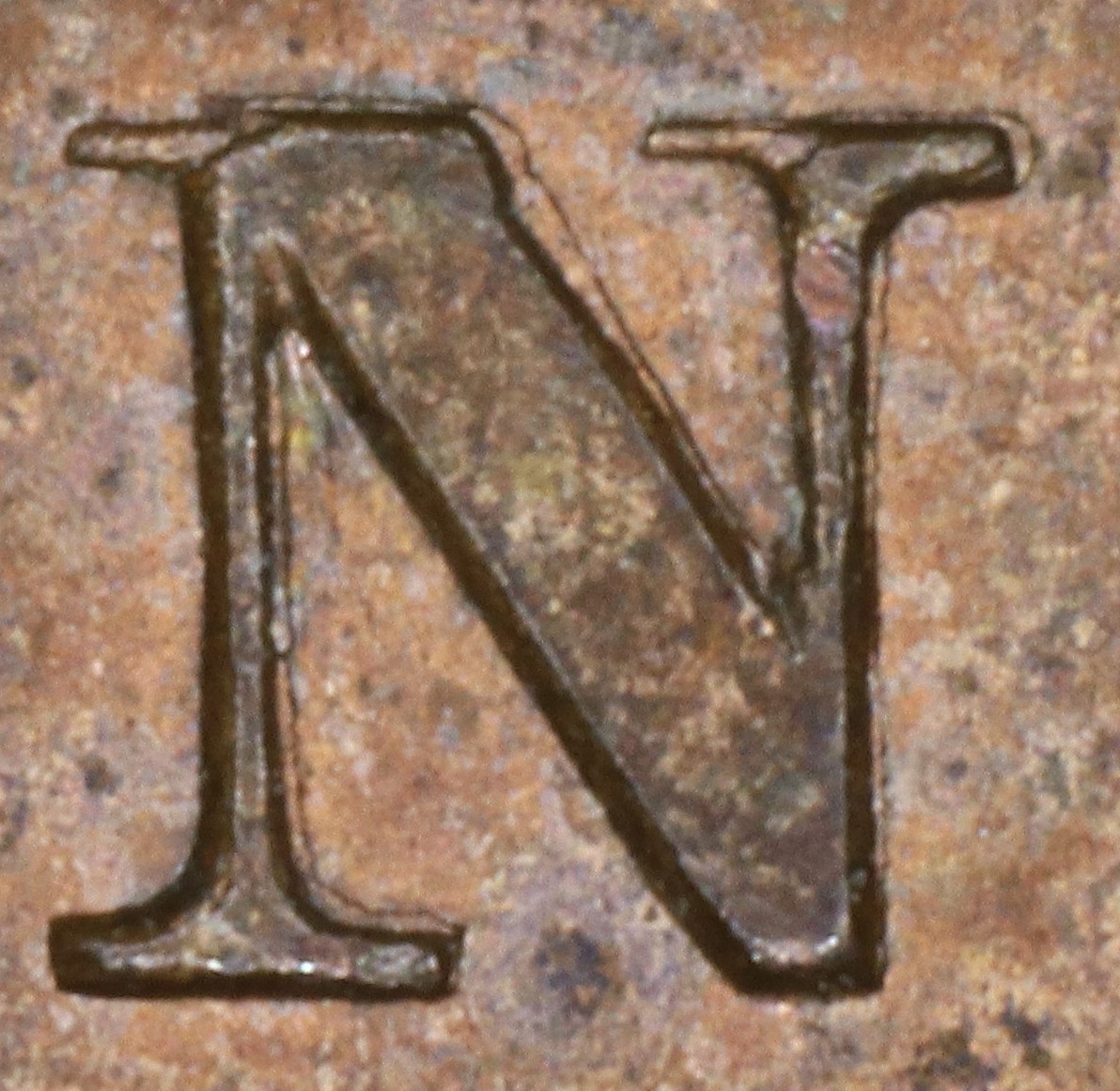

In BANK and CANADA the N is repunched with a new font with very thin serifs. The thin serifs of the new font show at the left upper corner and the left side of the top of the right leg.

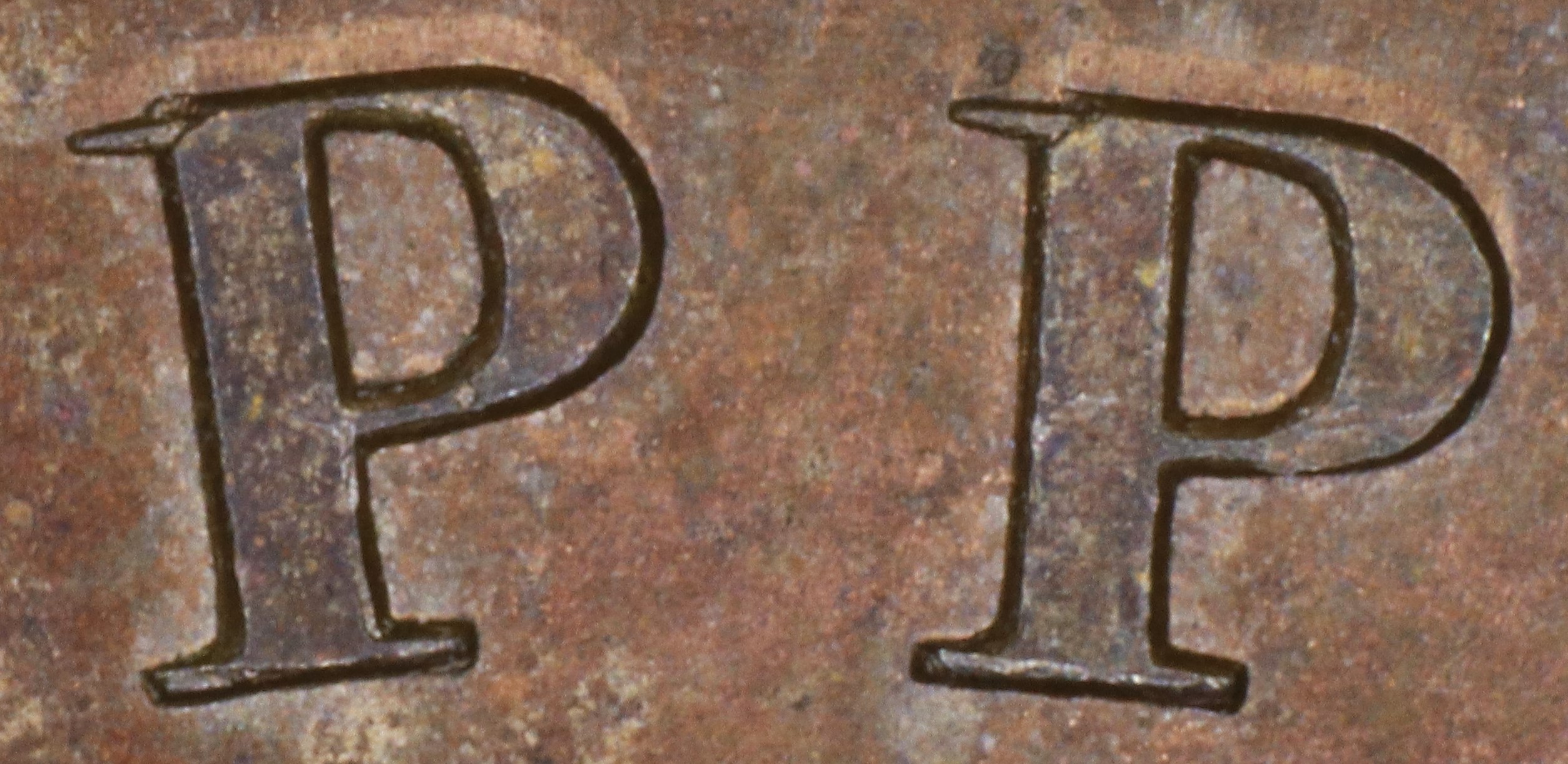

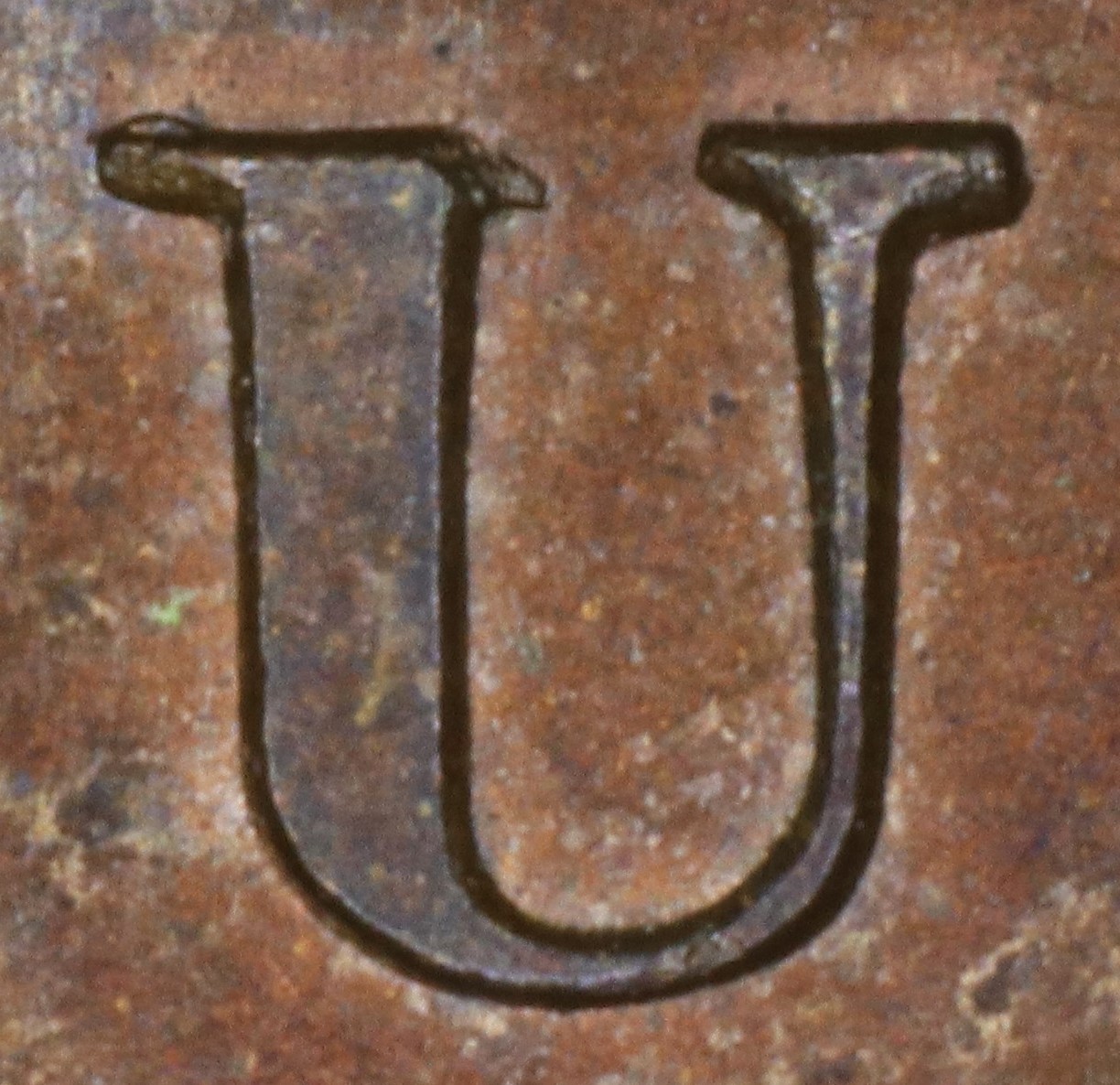

In UPPER the original Ps with broken upper left corners are repunched in slightly lower relief in a new font with the upper left serif tapers (in the original font they were parallel). On better condition examples one can see the edges of the broken corners.

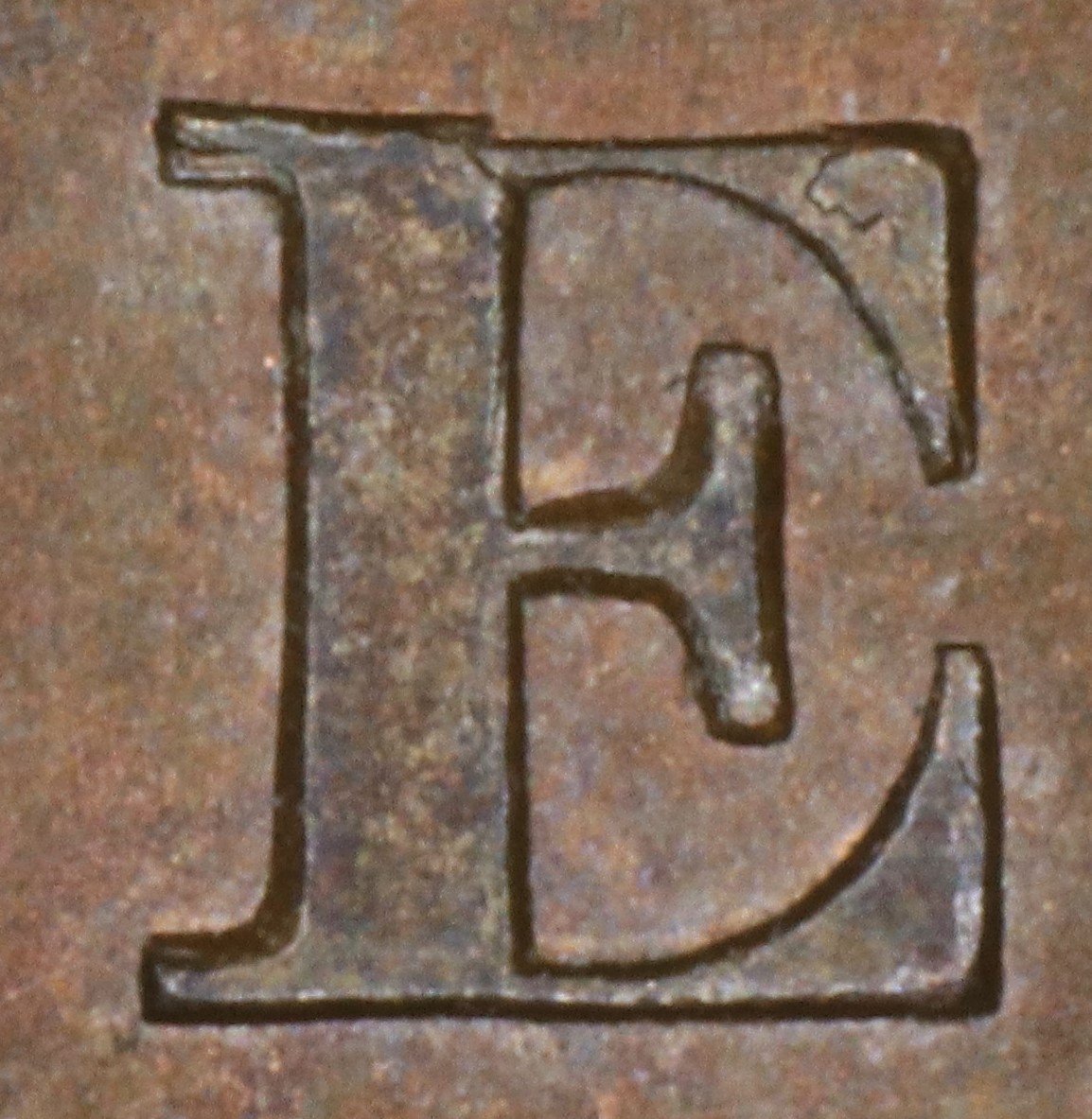

In UPPER the original E with a broken top arm has been repunched in lower relief, so that on higher grade examples one can still see the broken edges of the gap in the top arm and doubling of the upper left serif.

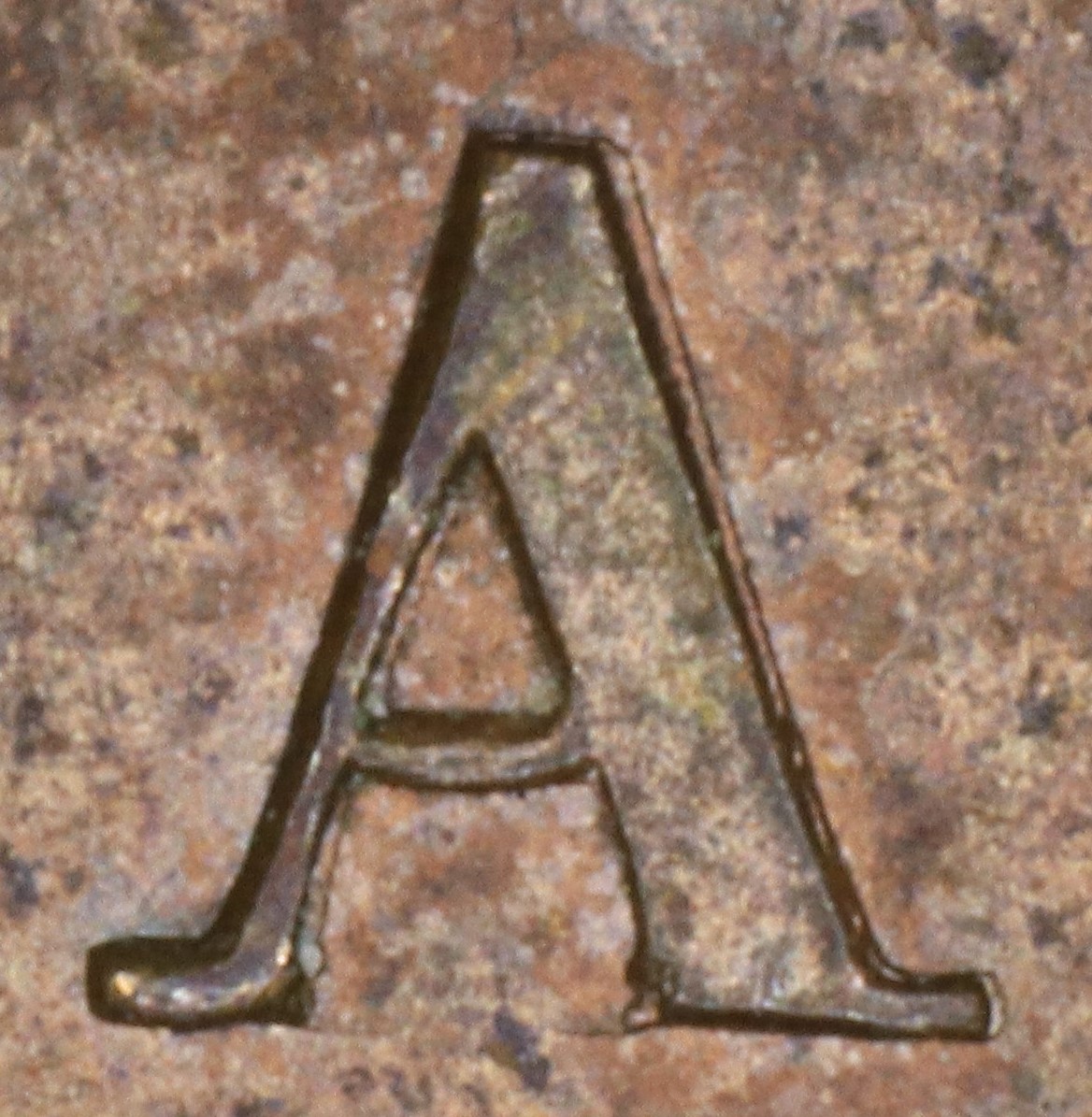

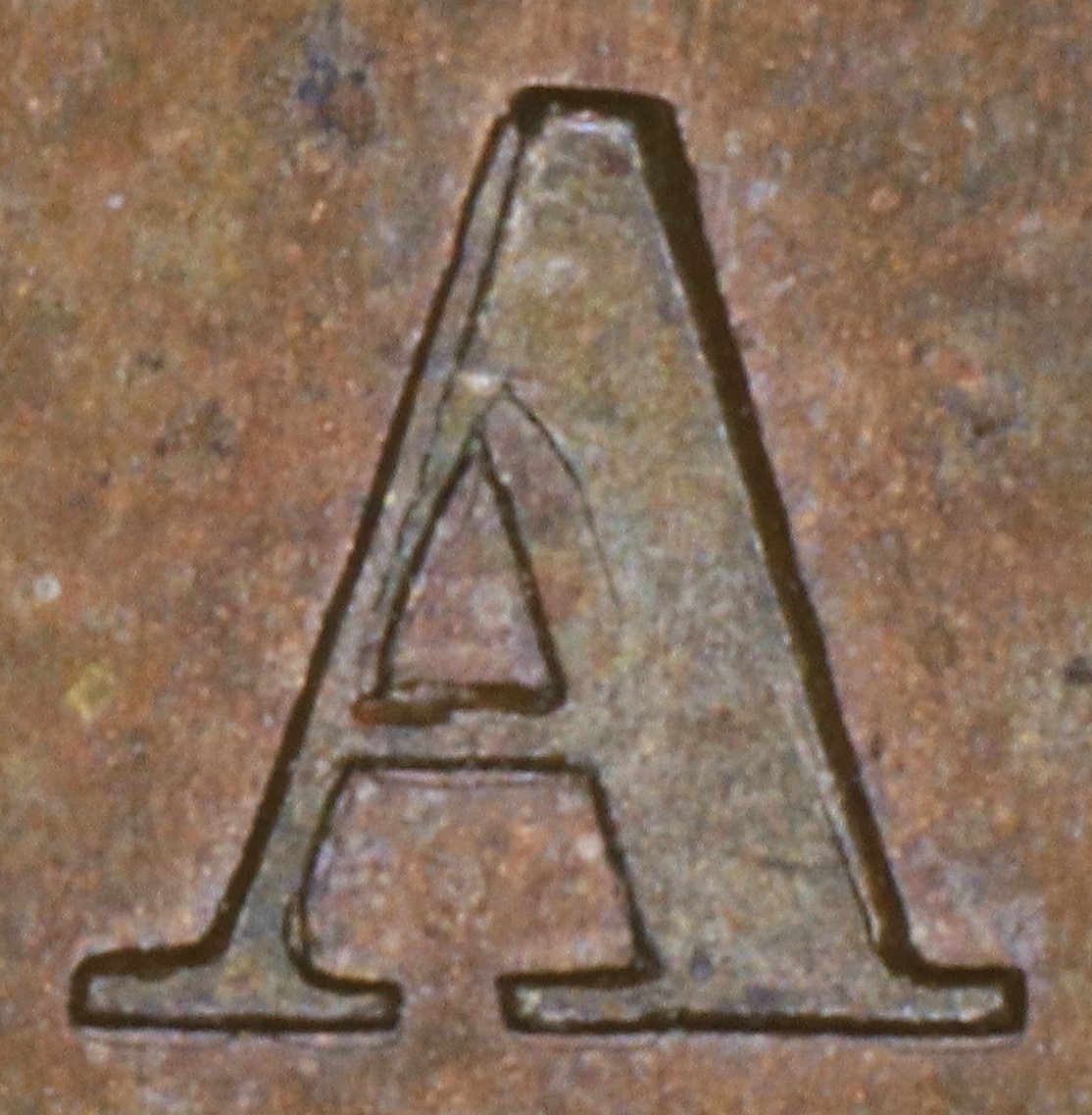

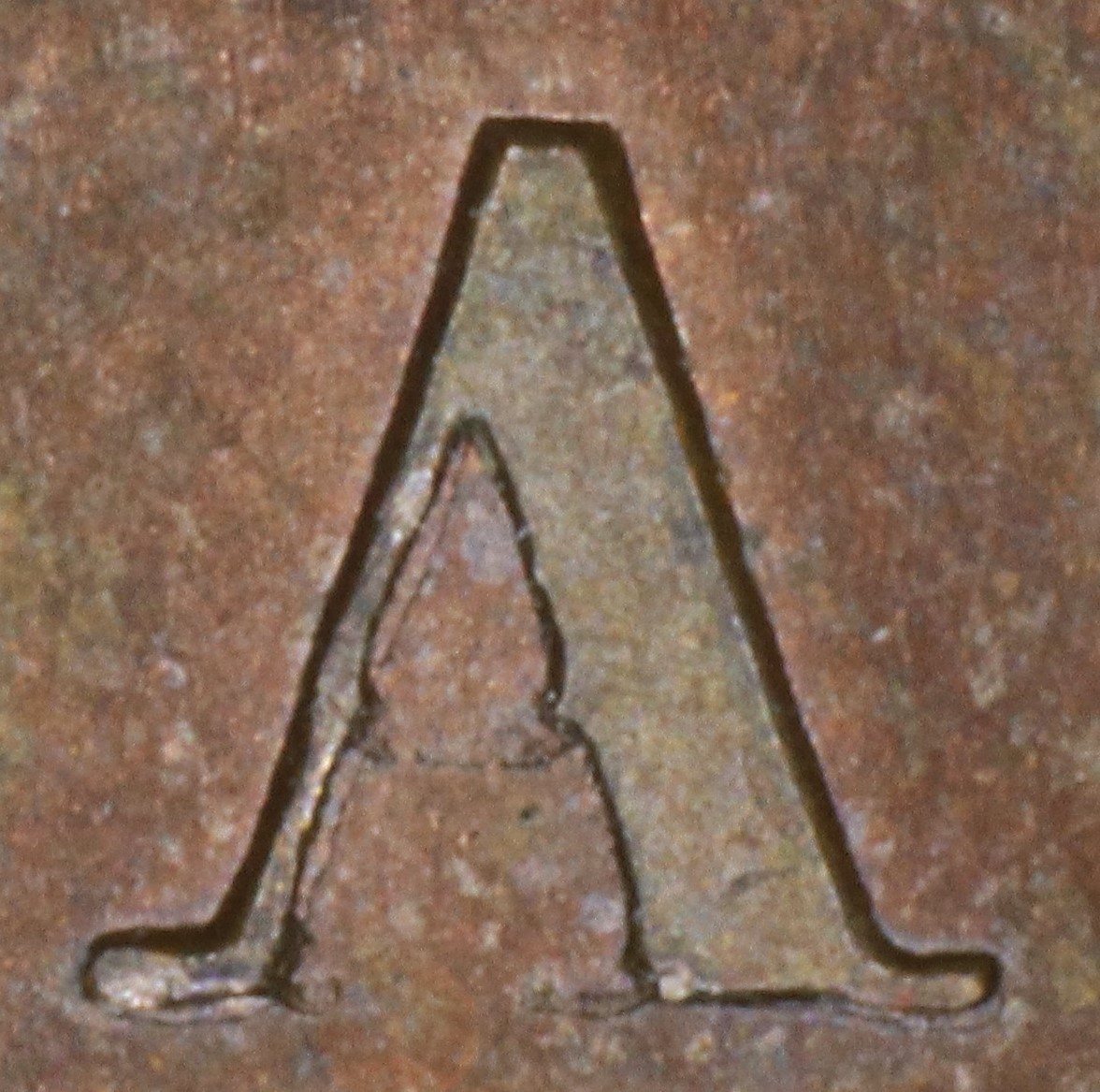

In CANADA the A is repunched to the left in slightly lower relief, causing doubling of the left side of the left leg and the right side of the inner triangle.

3. Obverse O229 Die Clashes, Gouges, and Misc. Features

None noted.

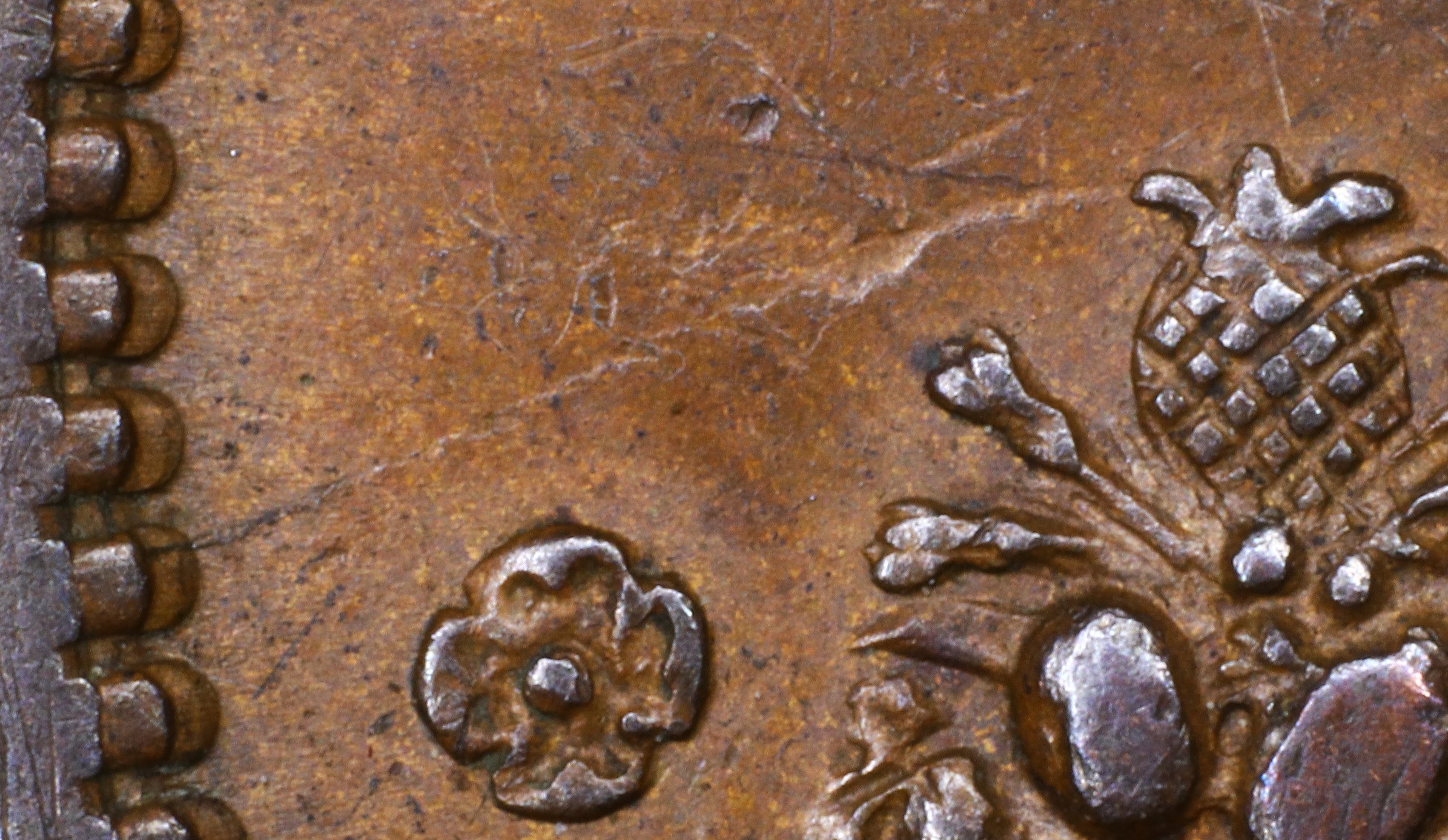

1. Reverse R228B Die Cracks and Die State Progression

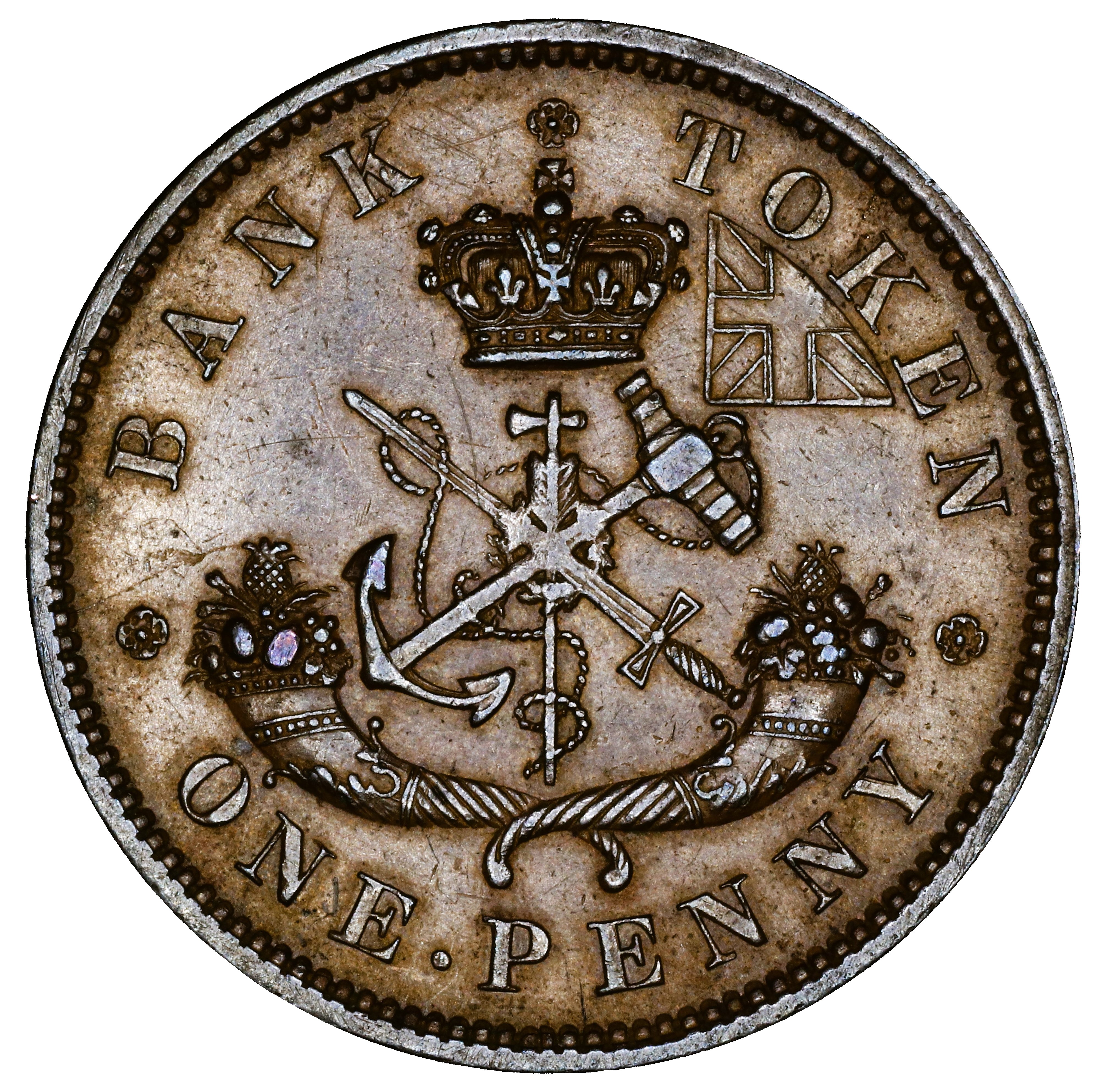

Summary:  BANK Crn TOKEN * ONE PENNY *

Red = area with die crack(s) observed in most advanced die pair state

Die Pair State Progression

Abbreviations: Cr = crack, T = trace, S = small, M = moderate, L = large

2. Reverse R228B broken Letter Unrepaired or Repunched

Summary: BANK TOKEN ONE PENNY

Letter color code: Black = normal, Green = broken & unrepaired, Brown = broken with noteworthy repunching

Special Comments:

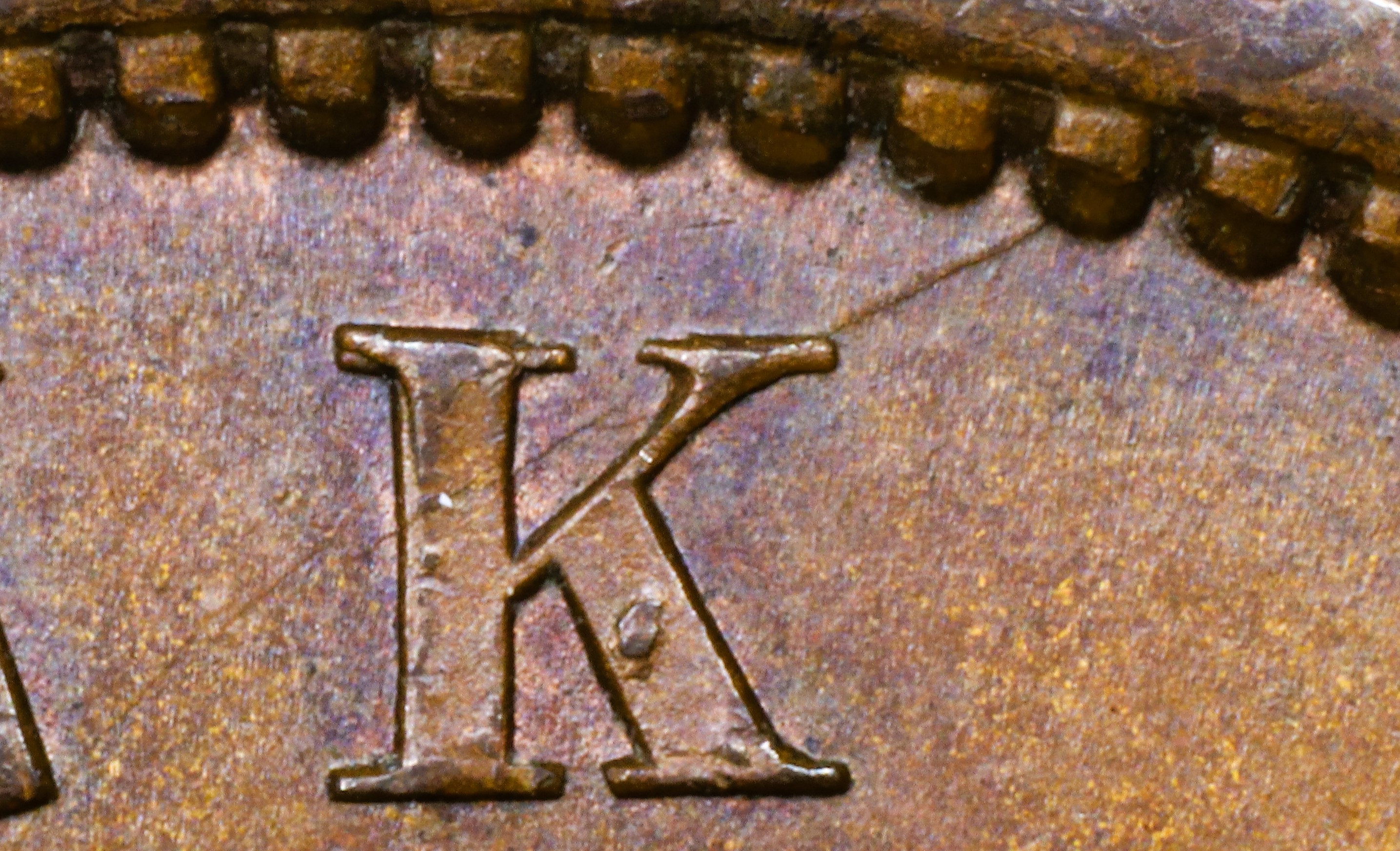

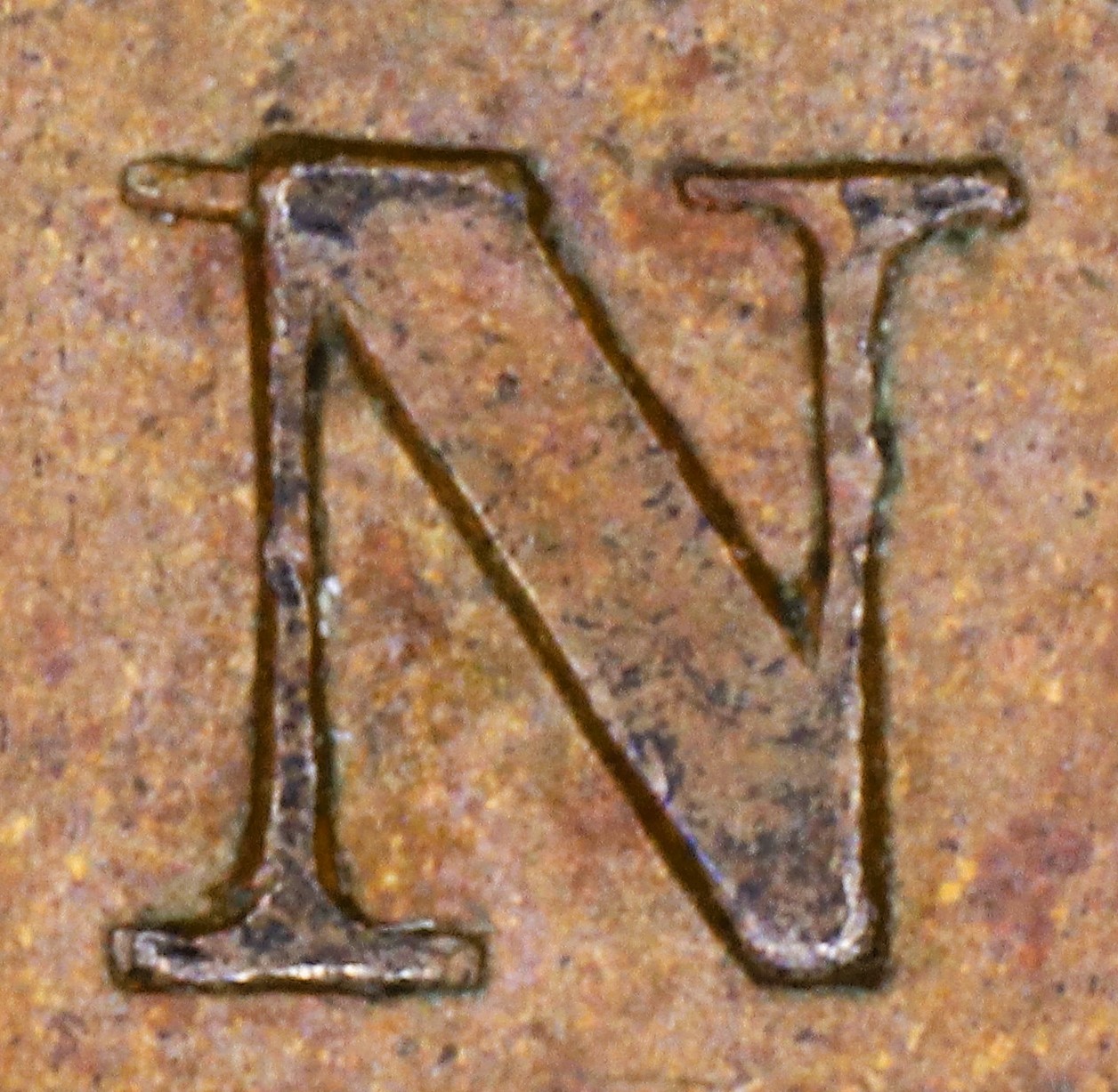

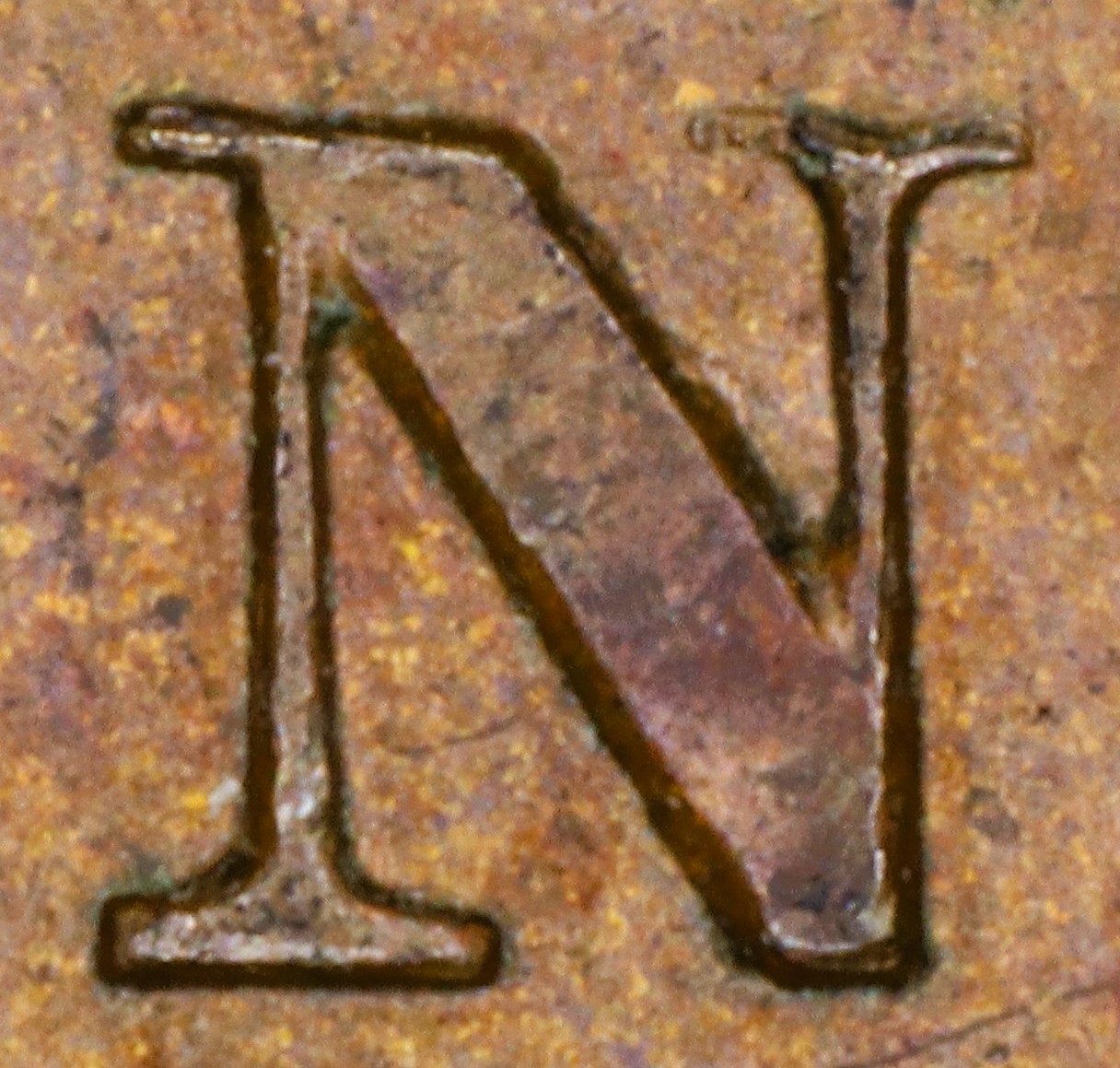

In BANK the broken original N is repunched in lower relief with a new font with thin serifs. On higher grade examples one can still see the broken edges of the original letter at the upper left corner and the top of the right leg..

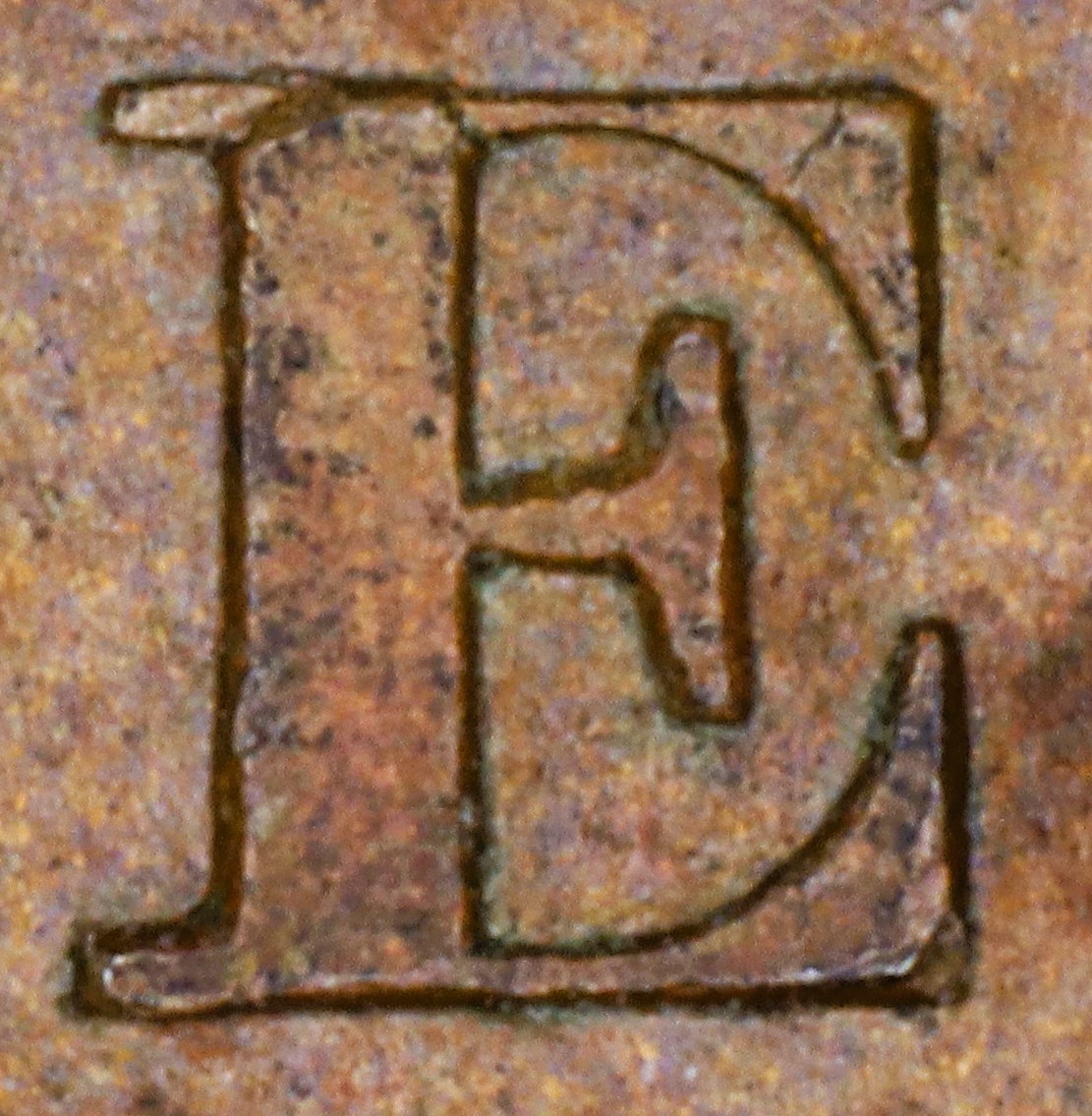

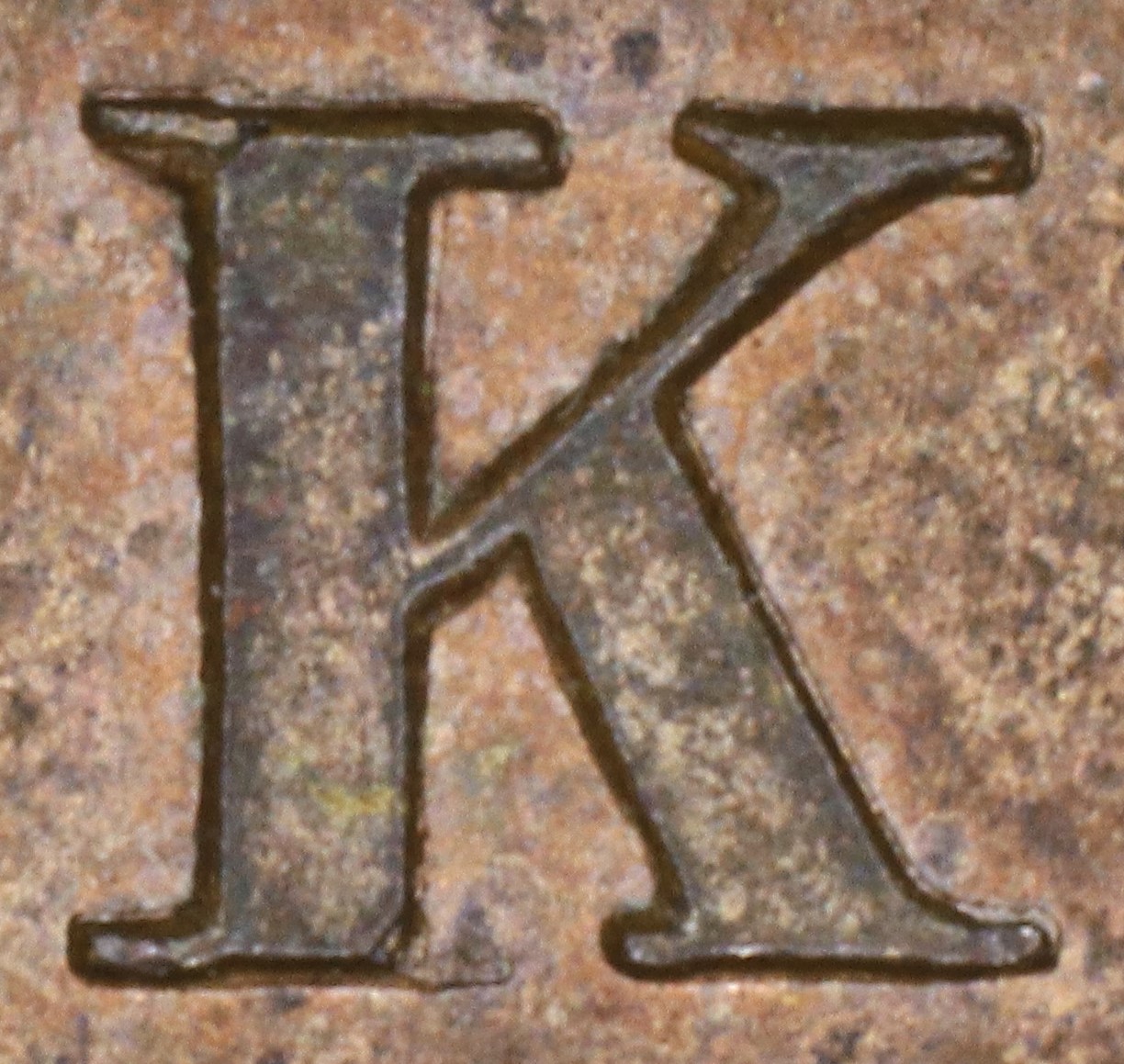

In TOKEN the broken original E is repunched in lower relief, so that on higher grade examples one can still see the broken upper left corner and broken edges of the gap in the top arm.

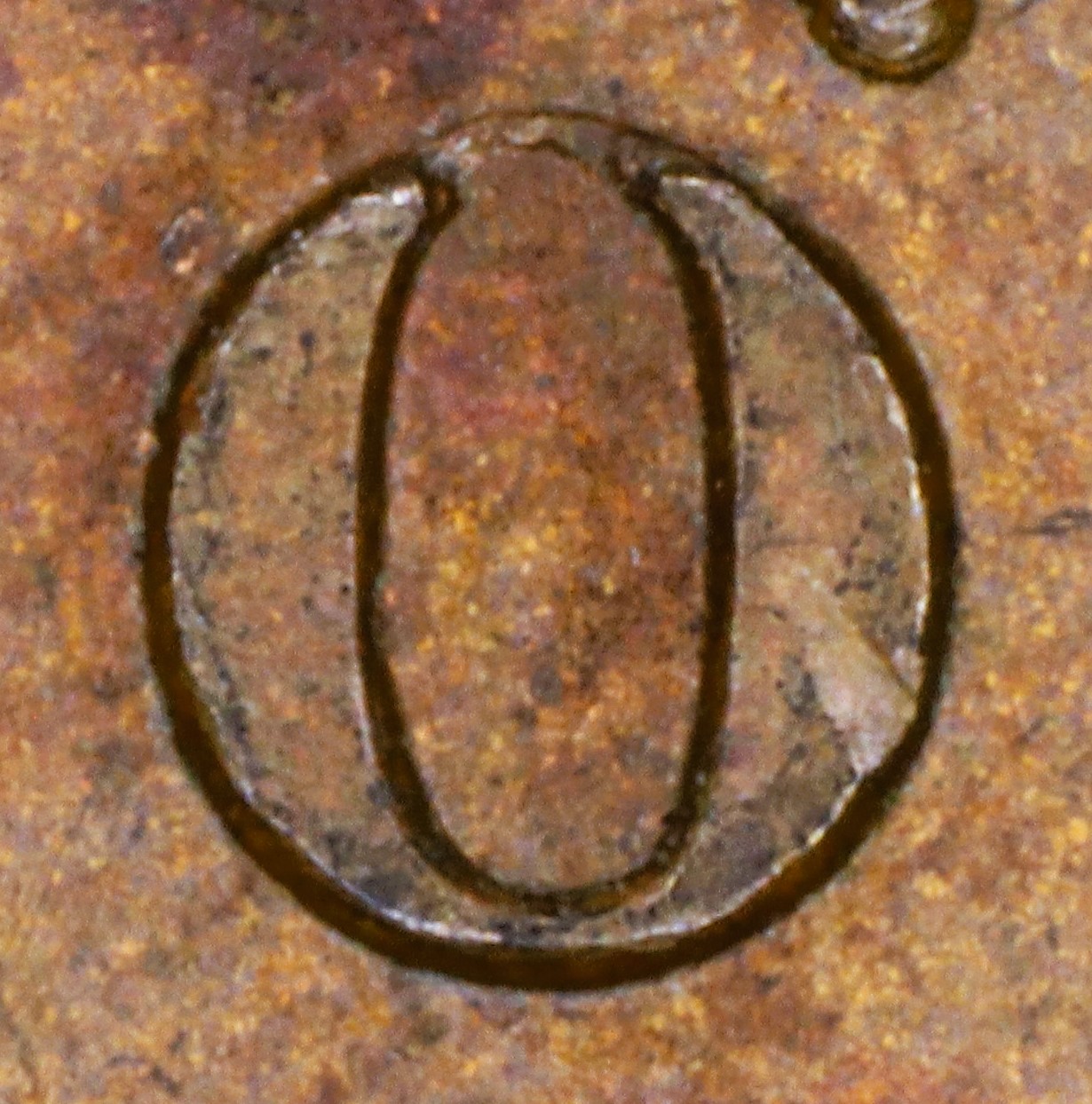

In ONE the original broken O is repunched in low relief, so one can still see the broken section at the top of the original letter.

3. Reverse R228B Die Clashes, Gouges, and Misc. Feature
